Brand Name : COREMAN
Model Number : CM-P6-RS
Certification : CE,ROHS,SGS,FCC,UL,etc.
Place of Origin : China
MOQ : 1 set
Price : 120-830USD/set
Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability : 5000 sqm one month
Delivery Time : 3-12days
Packaging Details : wooden case ,flight case,carton case

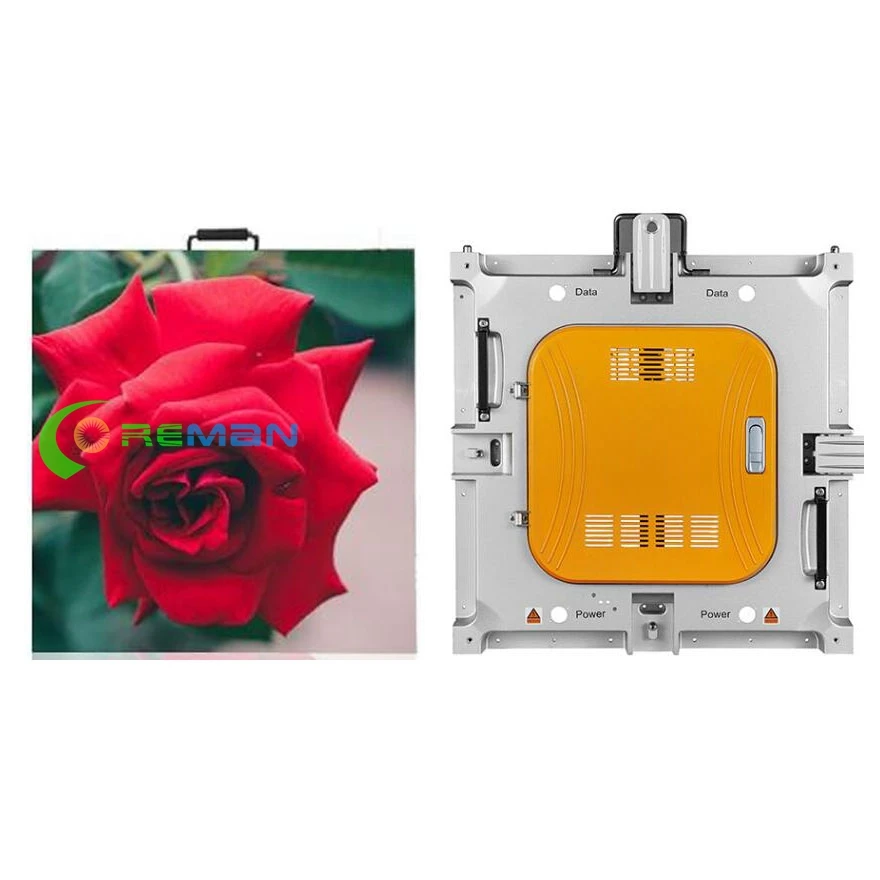

Item : P6 RGB rental indoor led display
module size : 192X192mm
led chip lamp : multi color kinglight nationstar
usage : indoor
cabinet material : rental die casting
cabinet size : 576X576mm
controller : LINSN,xixun,novastar,colorlight,etc
signal interface : hub75
scan mode : 1/16 scan
effect : message text animation graphic video
p6 full color rental led display screen video led cabinet 960X960mm outdoor smd nova linsn
Quick Detail:
1. Lightweight - weighs only 8kg/14KG, single person can be a single portable,
and extremely easy to install;
2. Thin - box with die casting aluminum, high-strength, high toughness, high
precision and difficult to deformation, for the transport of effort;
3. High-precision - accurate to size of the electrical and mechanical
processing 0.1mm;
4. Compatible - the new structure designed to meet the lifting, stacking
requirements to meet the indoor and outdoor requirements;
5. Fast - up and down box connected by quick-locking mechanism, 10 seconds
to complete a cabinet installation, the installation of high accuracy;
6. Reliable - high strength hardness, good heat dissipation;
7. Cost - light weight housing, low cost of installation required; low power box,
save operating costs and reduce labor costs.
8. Indication lights to show status of power and signal status
9. Fast cooling: excellent heat dissipation performance to protect the module
circuit
Trade terms:
Business term: EXW,FOB,CFR.CIF.DDP,DDU Shenzhen
Delivery time:Production lead time less 20 sqm is about 3-15days, more than
50 sqm. is about 20days
Shipping port: Shenzhen, Mainland China
MOQ:LED Screen 1 sqm / LED module1pcs
Guarantee:Two to Five years quality guarantee
Warranty terms:
(1) We provide warranty of all components for 24 months. During this time,
we will replace or repair our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation
training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, RoHS and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some
other expert suggestion.
(2) We will send our engineers to your place if we are expected after our
negotiation.
6. Additional Service
We provide you the forwarding information, and some other information
such as flight case, structure information for your reference for free.
Indoor fixed LED display: P2 P2.5, P3, P4, P5, P6, P7.62,P8, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25 ,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91, P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
Pixel pitch | 5mm | 6mm |
Module size | 320X160mm | 192X192mm |
Resolution | 64X32 | 32X32dots |
Density of pixel | 40000dots/m2 | 27777dots/m2 |
LED Size | SMD2121 | SMD3528 |
Pixel configuration | 1R1G1B 3in1 | 1R1G1B |
Best viewing distance | ≥5m | ≥5m |
Horizontal viewing angle | 140º | 140º |
Viewing angle | 140º | 140º |
Driving method | 1/16 scan | 1/16 scan |
Brightness | 1500cd/sqm | 1700cd/m2 |
Refresh rate | 960-1920Hz(Max 3840Hz) | 960-1920Hz(Max 3840Hz) |
IP grade | IP40 | IP40 |
Max power consumption | 30W/pcs | 38W/pcs |
Avg power consumption | 18W/pcs | 20W/pcs |
Input voltage | DC5VAC110V/220V±10% | AC110V/220V±10% DC5V |
Storage temperature | —40°C~65°C | —40°C~65°C |
Working temperature | —20°C~55°C | —20°C~55°C |
MTBF | ≥10,000 hours | ≥10,000 hours |
Life span | ≥100,000hours | ≥100,000hours |
Control system | Nova/Linsn/Colorlight/DBstar etc | Nova/Linsn/Colorlight/DBstar etc |
Specification might be slightly different based on different components |
